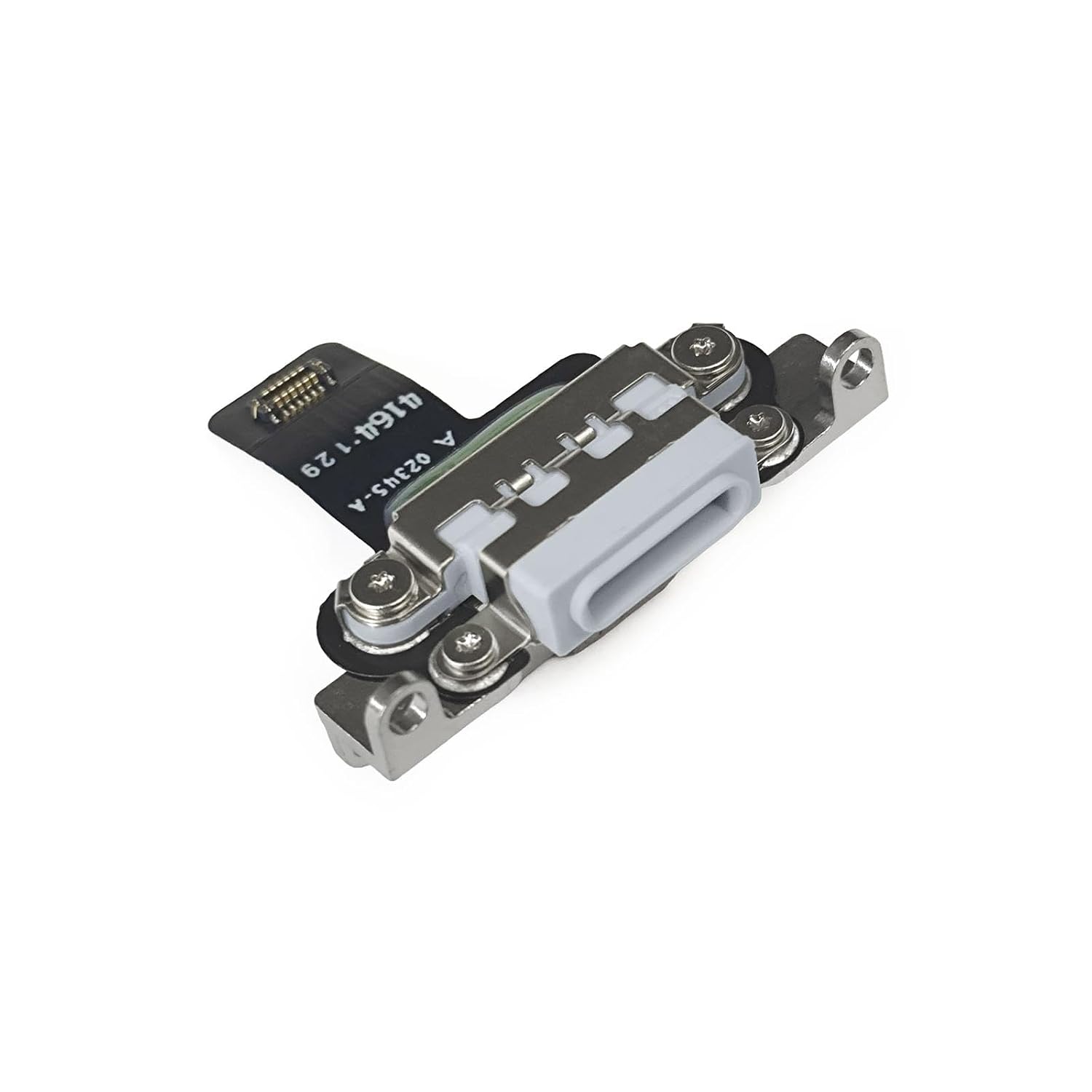

DC Jack Charging Port Lightning Connector with Flex Cable Replacement for Apple AirPods Max A2096 (Lightning,2020,EMC 3276) 821-02345-A (Sky Blue)

Compatible with AirPods Max A2096 (Lightning,2020,EMC 3276)

• 【Compatible Models】 Do 𝗡𝗼𝘁 𝗙𝗶𝘁 to AirPods Max A3184 (USB-C,2024,EMC 8663) or A3454 (USB-C,2026),𝗢𝗡𝗟𝗬 Compatible with AirPods Max A2096 (Lightning,2020,EMC 3276) ,𝗠𝗼𝗱𝗲𝗹 𝗜𝗱𝗲𝗻𝘁𝗶𝗳𝗶𝗲𝗿: AirPodsMax1,1 ,𝗢𝗿𝗱𝗲𝗿 𝗡𝘂𝗺𝗯𝗲𝗿: MGYJ3AM/A (Silver) MGYH3AM/A (SpaceGray) MGYL3AM/A (Sky Blue) MGYM3AM/A (Pink) MGYN3AM/A (Green)
• 【What's Include】1 Piece*Charging Port (Lightning) , (𝗔𝘂𝘁𝗵𝗲𝗻𝘁𝗶𝗰/Genuine New,Not a 3rd Part Made)
• 【Functions & Architecture】The port handles 5V charging, providing 20 hours of battery life. A 5-minute quick charge gives 1.5 hours of playback. It also enables bidirectional data transfer, converting incoming analog audio from a 3.5mm cable into a 24-bit/48kHz digital signal inside the ear cup. However, unlike the newer USB-C model, this 2020 Lightning port cannot output native, pure digital lossless audio directly over a standard data cable
• 【Compatibility】The 2020 AirPods Max requires a USB-C to Lightning or USB-A to Lightning cable for charging. It is fully compatible with App-le power bricks and Qi-wireless chargers via the Smart Case. For wired audio, it is strictly compatible only with the official App-le Lightning to 3.5mm Audio Cable ($35). Standard Lightning-to-3.5mm adapters or third-party auxiliary cables will not transmit audio because they lack the required internal bidirectional analog-to-digital converter (ADC)
• 【Common Failure】The most notorious issue is "three amber flashes when pressing the controls", often triggered by liquid condensation forming inside the ear cups and shorting the internal pin connectors. Over time, the internal micro-flex ribbon cable connecting the port to the main logic board degrades from headband rotation stress. Users also experience the charging port getting loose or detached from the inner bracket, leading to intermittent power connection or an outright refusal to charge
• 【Repairability】The Lightning port itself is a modular component secured by screws rather than heavy glue, making physical replacement surprisingly straightforward once inside. However, opening the aluminum ear cup requires specialized tools like prying picks and Torx screwdrivers.
• 【Pro-Tips for Technicians】To prolong port life, Clean lint out of the port safely using a wooden toothpick—never use metal needles. To prevent condensation shorts, periodically remove the ear cushions to wipe down the metal walls, and store the headphones vertically. If pairing fails or charging glitches occur, try a hard factory reset by holding the Noise Control button and Digital Crown for 15 seconds until the LED flashes amber, then white
